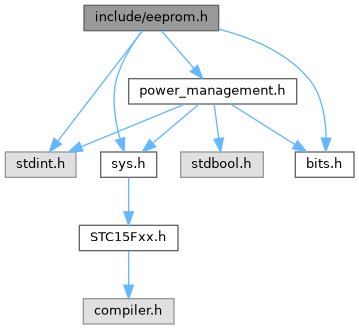

Include dependency graph for eeprom.h:
Go to the source code of this file.
Macros | |
| #define | OP_TRIGGER_SEQ_FIRST_BYTE 0x5A |
| Read operation trigger sequence first byte. | |
| #define | OP_TRIGGER_SEQ_SECOND_BYTE 0xA5 |
| Read operation trigger sequence second byte. | |
| #define | CMD_FAIL_BIT 4 |
| Command fail error code. | |
| #define | ERROR_VALUE 0xFF |
| Error value. | |
| #define | eeprom_disable_iap() |
| Disables IAP. | |
| #define | get_eeprom_last_operation_result() (get_bit(IAP_CONTR, CMD_FAIL_BIT) ? CMD_FAIL_ERROR : CMD_SUCCESS) |
| get last operation result | |
| #define | eeprom_read_byte(addr_high, addr_low, value_ptr, error_ptr) |
| Reads single byte from the EEPROM at the given address. | |
| #define | eeprom_erase_page(sector_start_addr, error_ptr) |
| Erases a sector in the EEPROM starting from a specified address. | |
| #define | eeprom_write_byte(addr_high, addr_low, value, error_ptr) |
| Writes a single byte to the EEPROM at the specified address. | |
Enumerations | |
| enum | eeprom_operation_t { READ_OP = 0x01 , WRITE_OP = 0x02 , ERASE_OP = 0x03 } |
| EEPROM operation types. More... | |
| enum | eeprom_operation_status_t { CMD_SUCCESS = 0 , CMD_FAIL_ERROR = 1 , LOW_VOLTAGE_ERROR = 2 } |
| EEPROM operation status. More... | |
