uart1_9bit_shared.h File Reference

#include <stdint.h>
#include <stdbool.h>
#include <sys.h>

Include dependency graph for uart1_9bit_shared.h:

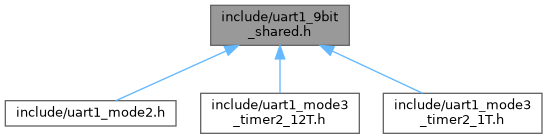

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
9-bit
9-bit receive and send functions
#define	uart1_send_9bit(byte, ninth)
	Send 9-bit data over UART1 in mode 2, 3.
#define	uart1_receive_9bit(byte, ninth)
	Receive 9-bit data over UART1 in mode 2, 3.
8-bit with parity bit
8-bit receive and send with parity bit functions
#define	uart1_send_byte_even_parity(byte)
	Send byte over UART1 in mode 2, 3 with even parity bit.
#define	uart1_send_byte_odd_parity(byte)
	Send byte over UART1 in mode 2, 3 with odd parity bit.
#define	uart1_send_byte_space_parity(byte)
	Send byte over UART1 in mode 2, 3 with space parity bit.
#define	uart1_send_byte_mark_parity(byte)
	Send byte over UART1 in mode 2, 3 with mark parity bit.
#define	uart1_receive_byte_even_parity(byte)
	Receive byte over UART1 in mode 2, 3 with even parity bit.
#define	uart1_receive_byte_odd_parity(byte)
	Receive byte over UART1 in mode 2, 3 with odd parity bit.
#define	uart1_receive_byte_mark_parity(byte)
	Receive byte over UART1 in mode 2, 3 with mark parity bit.
#define	uart1_receive_byte_space_parity(byte)
	Receive byte over UART1 in mode 2, 3 with space parity bit.
8-bit-2-stop-bit functions
8-bit with two stop bits receive and send functions
#define	uart1_send_byte_2stop_bits(byte)
	Send byte over UART1 in mode 2, 3 with 2 stop bits.
#define	uart1_receive_byte_2stop_bits(byte)
	Receive byte over UART1 in mode 2, 3 with 2 stop bits.
