#include <stdint.h>
#include <stdbool.h>
#include <interrupt.h>

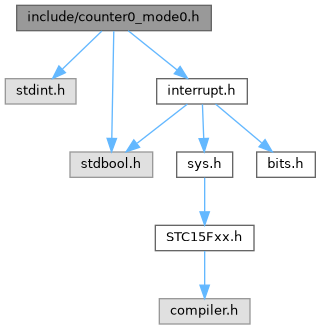

Include dependency graph for counter0_mode0.h:

Macros
#define	T0 P34
	T0 pin definition.

init
Counter initializaion functions
#define	counter0_mode0_init()
	Initialize mode0 for counter0.

run
Counter run/stop/reload functions
#define	counter0_mode0_start(value)
	Run counter0.

#define	counter0_mode0_stop()
	Stop counter0.

#define	is_counter0_mode0_started() (TR0 == 1 && (is_counter0_mode0_gate_opened() \|\| INT0 == 1) )
	Get counter0 mode0 started status.

read/write
Counter get and set value functions
#define	counter0_mode0_get_value() ((((uint16_t) TH0) << 8) \| TL0)
	get counter0 value in mode0

#define	counter0_mode0_set_value(value)
	set counter0 value in mode0

config
Counter0 pin output and gate config functions
#define	counter0_mode0_enable_P35_output() (bit_set(INT_CLKO, SBIT0))
	enable output to P3.5

#define	counter0_mode0_disable_P35_output() (bit_clr(INT_CLKO, CBIT0))
	disable output to P3.5

#define	is_counter0_mode0_P35_output_enabled() (test_if_bit_set(INT_CLKO, SBIT0))
	get pin P3.5 output state to P3.5

#define	counter0_mode0_open_gate() (bit_clr(TMOD, CBIT3))
	Open counter0 gate.

#define	counter0_mode0_close_gate() (bit_set(TMOD, SBIT3))
	Close counter0 gate.

#define	is_counter0_mode0_gate_opened() (test_if_bit_cleared(TMOD, SBIT3))
	Get gate state.
