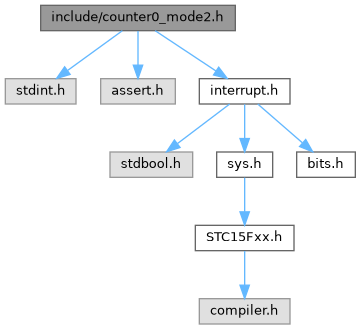

Include dependency graph for counter0_mode2.h:
Go to the source code of this file.
Macros | |
| #define | T0 P34 |
| T0 pin definition. | |
| #define | INT0 P32 |
| INT0 pin definition. | |
init | |
Counter initializaion functions | |
| #define | counter0_mode2_init() |
| Initialize mode2 for counter0. | |
start/stop | |
Counter0 start/stop functions | |
| #define | counter0_mode2_start(value) |
| Starts Counter 0 in Mode 2 with a specified initial value. | |
| #define | counter0_mode2_stop() |
| Stop counter0. | |
| #define | is_counter0_mode2_started() (TR0 == 1 && (is_counter0_mode2_gate_opened() || INT0 == 1) ) |
| Get counter0 mode2 started status. | |
read/write | |
Counter get and set value functions | |
| #define | counter0_mode2_get_value() (TL0) |
| get counter0 value in mode2 | |
| #define | counter0_mode2_set_value(value) |
| set counter0 value in mode2 | |
config | |
Counter0 pin output and gate config functions | |
| #define | counter0_mode2_enable_P35_output() (bit_set(INT_CLKO, SBIT0)) |
| enable output to P3.5 | |
| #define | counter0_mode2_disable_P35_output() (bit_clr(INT_CLKO, CBIT0)) |
| disable output to P3.5 | |
| #define | is_counter0_mode2_P35_output_enabled() (test_if_bit_set(INT_CLKO, SBIT0)) |
| get pin P3.5 output state to P3.5 | |
| #define | counter0_mode2_open_gate() (bit_clr(TMOD, CBIT3)) |
| Open counter0 gate. | |
| #define | counter0_mode2_close_gate() (bit_set(TMOD, SBIT3)) |
| Close counter0 gate. | |
| #define | is_counter0_mode2_gate_opened() (test_if_bit_cleared(TMOD, SBIT3)) |
| Get gate state. | |
