#include <stdint.h>
#include <frequency.h>
#include <timer0_mode0.h>
#include <timer_common.h>
#include <timer_to_ms_common.h>

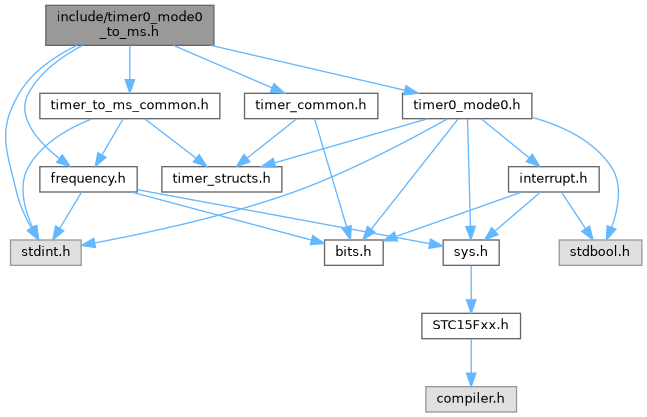

Include dependency graph for timer0_mode0_to_ms.h:

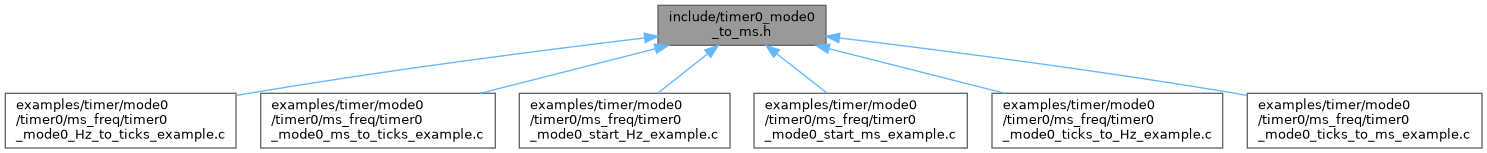

This graph shows which files directly or indirectly include this file:

Macros
frequency and ticks
Timer ticks to frequency and vice versa convertions
#define	timer0_mode0_ticks_to_Hz(ticks) (timer_ticks_to_Hz(ticks, get_timer0_clock_divider(), get_frequency_divider_scale()))
	Converts ticks to timer frequency for timer0 multiplied by 100.

#define	timer0_mode0_Hz_to_ticks(frequency) (timer_Hz_to_ticks(frequency, get_timer0_clock_divider(), get_frequency_divider_scale()))
	Converts frequency to timer0 mode0 ticks.

#define	timer0_mode0_ticks_to_ms(ticks) (timer_16bit_ticks_to_ms(ticks, get_timer0_clock_divider(), get_frequency_divider_scale()))
	Convert ticks count to ms.

#define	timer0_mode0_ms_to_ticks(ms) (timer_ms_to_ticks(ms, get_timer0_clock_divider(), get_frequency_divider_scale()))
	Convert milliseconds to timer0 ticks.

timer start for frequency and ms
Start Timer for ms or frequency
#define	timer0_mode0_start_ms(ms)
	Start timer0 in mode 0 with ms duration.

#define	timer0_mode0_start_Hz(freq)
	Start timer0 in mode 0 with Hz frequency.

timer delay ms
Delay using timer
#define	timer0_mode0_delay_ms(ms)
	Run timer0 mode0 once and wait with program flow blocking timer not finished.
