#include <stdint.h>
#include <frequency.h>
#include <timer2_mode0.h>
#include <timer_common.h>
#include <timer_to_ms_common.h>

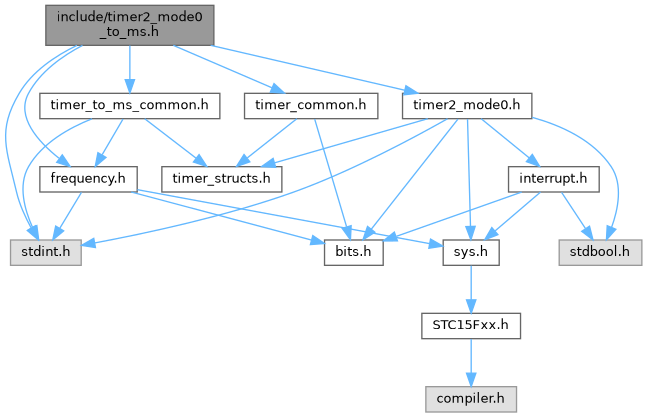

Include dependency graph for timer2_mode0_to_ms.h:

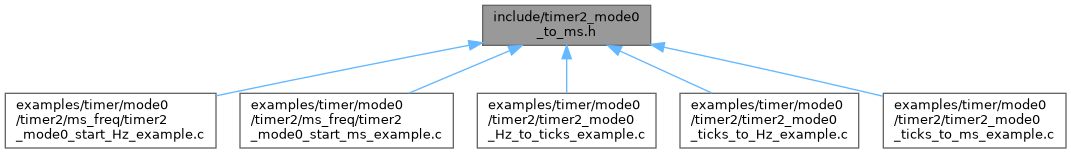

This graph shows which files directly or indirectly include this file:

Macros
ticks to frequency conversions
Timer ticks to overlow frequency and vice versa convertions
#define	timer2_mode0_ticks_to_Hz(ticks) (timer_ticks_to_Hz(ticks, get_timer2_clock_divider(), get_frequency_divider_scale()))
	Convert ticks to timer frequency for timer2 multiplied by 100.

#define	timer2_mode0_Hz_to_ticks(frequency) (timer_Hz_to_ticks(frequency, get_timer2_clock_divider(), get_frequency_divider_scale()))
	Converts frequency to ticks for timer2 mode0.

ticks to duration conversions
Timer ticks to timer overlow duration and vice versa convertions
#define	timer2_mode0_ticks_to_ms(ticks) (timer_16bit_ticks_to_ms(ticks, get_timer2_clock_divider(), get_frequency_divider_scale()))
	Convert ticks count to ms.

#define	timer2_mode0_ms_to_ticks(ms) (timer_ms_to_ticks(ms, get_timer2_clock_divider(), get_frequency_divider_scale()))
	Convert milliseconds to timer2 ticks.

timer start for frequency and ms
Start Timer for ms or frequency
#define	timer2_mode0_start_ms(ms)
	Start timer2 in mode 0 with ms duration.

#define	timer2_mode0_start_Hz(freq)
	Start timer2 in mode 0 with Hz frequency.

Macros
